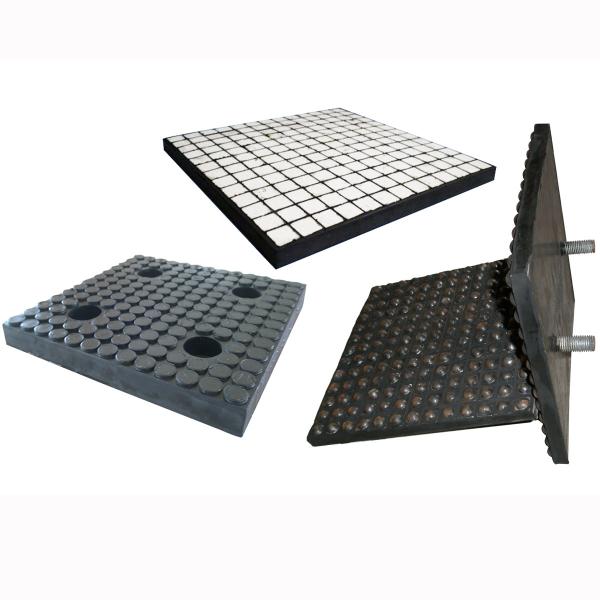

Abrasion Resistant Ceramic Rubber Composite Wear Liner For Conveyor System
Ceramic Wear Liner Description:
Ceramic wear liners are commonly used in industries such as mining, cement production, power generation, and steel manufacturing, where equipment is subjected to extreme conditions and heavy wear.
Ceramic wear liners are commonly used in mining, cement, pulp and paper, and other heavy industries where equipment and machinery are exposed to high levels of wear and tear. These liners are typically installed in areas where abrasive materials or harsh chemicals come into contact with equipment surfaces, such as chutes, hoppers, and conveyor systems.
Available Fixing Methods:
1. Welded studs.
2. Countersinks
3. Magnets
4. Bonding
5. Custom base.
Ceramic Wear Liner Specification:
| Specification ( L×W×T) | Thickness Details |
| 300×300×12mm | 6mm ceramic + 6mm rubber |
| 250×250×15mm | 10mm ceramic +5mm rubber |
| 250×300×16mm | 12mm ceramic +4mm rubber |
| 500×500×15mm | 10mm ceramic + 5mm rubber |
| 500×400×20mm | 12mm ceramic + 8mm rubber |
| 500×500×30mm | 20mm ceramic + 10mm rubber |
| 300×300×63mm | 50mm ceramic + 13mm rubber |
| 500×500×63mm | 50mm ceramic + 13mm rubber |
Note: The kind of composite plate can be twisted, divided to cater for various installations of irregular equipments. Please Contact us for more specification and sizes
Ceramic Wear Liner Features:
1. High alumina ceramic offers excellent wear resistant
2. Rubber layer prevents ceramic tiles breakage
3. available with stud bolt and weldable installation methods or cn bonding layer
4. Various shape and size of ceramic, bricks, cylindrical, etc.
Ceramic Wear Liner Application:
Alumina ceramic tiles are widely used in industrial applications that require high wear resistance, hardness, and thermal stability. Some common applications for alumina ceramic tiles include:
-
Mining industry: Alumina ceramic tiles are used as wear-resistant liners in mining equipment such as pipes, chutes, hoppers, and conveyor systems.
-
Power generation industry: Alumina ceramic tiles are used in coal-fired power plants as wear-resistant liners in coal bunkers, chutes, and ash handling systems.
-
Cement industry: Alumina ceramic tiles are used as lining materials in cement mills, separators, fans, and conveyors to prevent abrasive wear and extend the life of equipment.
-
Steel industry: Alumina ceramic tiles are used in steel mills as lining materials for blast furnace troughs, ladles, and other high-temperature equipment.
-
Chemical industry: Alumina ceramic tiles are used in chemical processing plants as lining materials for reactors, pipes, and tanks that handle corrosive materials.
Overall, alumina ceramic tiles are an excellent choice for industrial applications where wear resistance, hardness, and thermal stability are critical requirements.
Why choose us:
1. Rich experience on production process of ceramic wear liner
2. Strict quality control on ceramic wear liner
3. Good delivery time
4. Custom shapeceramic wear liner are available.
5. Excellent bonding between rubber and ceramic
We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
